Swinging Head 3D Stone Carving Machine 4 Axis

Name: Swinging Head 3D Stone Carving Machine 4 Axis
Brand: Anhui Youke CNC Equipment Co., Ltd
SKU: HM4X-3515-2HD
Price: 10,500.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Model Number: HM4X-3515-2HD

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: width 2200 x length 5200 x height 2350mm

Delivery Time: 15 work days

Payment Terms: L/C,D/A

Get Best Price

Product Details

Product Description

Highlight:

Reducer:	(Qingchuan)RV121:1	OperatingVoltage:	AC380V/50Hz
File Format:	G-code/HPGL	Control System:	WEIHONG 4Axis
Machine Dimension:	4500×2300×2300mm	Weight:	3200kg

Reducer:	(Qingchuan)RV121:1
OperatingVoltage:	AC380V/50Hz
File Format:	G-code/HPGL
Control System:	WEIHONG 4Axis
Machine Dimension:	4500×2300×2300mm
Weight:	3200kg

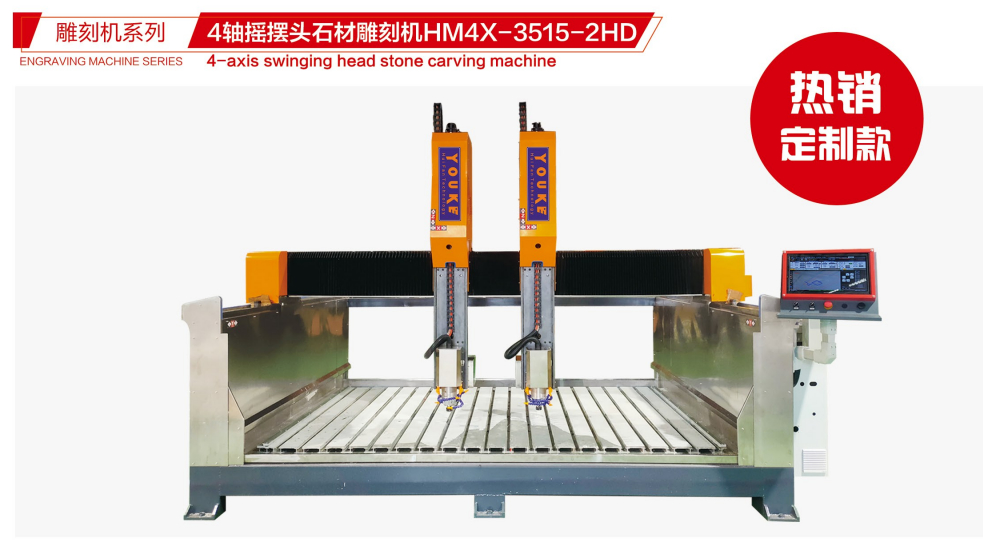

Swinging Head 3D Stone Carving Machine 4 Axis

Introduction

The 4-axis swing head engraving machine represents advanced CNC engraving equipment specifically engineered for machining complex-shaped surfaces and contours. Unlike traditional 3-axis machines, this configuration incorporates an additional rotational axis (commonly designated as the "swing head" or "fourth axis"), enabling multi-angle tool orientation for omnidirectional engraving operations.

Functional Characteristic

★ Equipped with Shanghai Weihong CNC system supporting 4-axis linkage (with RTCP), featuring 180° swing head rotation to effectively solve curved surface and column capital side-angle engraving challenges in stone processing.

★ Powered by branded servo motors and RV reducers for high-speed operation, micron-level precision, and industrial-grade stability.

★ X/Y/Z-axis transmission utilizes imported 30/35mm linear square guide rails, while swing head integrates high-precision Qinchuan RV reducer - delivering exceptional load capacity, vibration-free motion, and ±0.01mm repeatability.

★ Reinforced thick-walled steel welded frame with stainless steel-clad body/worktable ensures deformation-resistant rigidity and 50% extended service life.

Swinging Head 3D Stone Carving Machine 4 Axis 0
