Special Stone Granite Cutting Cnc Machine Router Engraving Milling 6000rpm/min

Name: Special Stone Granite Cutting Cnc Machine Router Engraving Milling 6000rpm/min
Brand: Anhui Youke CNC Equipment Co., Ltd
SKU: HM5X-1650-1HD
Price: 10,500.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Model Number: HM5X-1650-1HD

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: width 2200 x length 5200 x height 2350mm

Delivery Time: 15 work days

Payment Terms: L/C,D/A

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Engraving granite cutting cnc machine, 6000rpm/min granite cutting cnc machine, 6000rpm/min cnc router stone engraving machine


Platformdimensions:	1800×5800mm	Workpiece Size:	1600×5000
Feed Height:	≤500mm	Blank Speed:	25m/min
Processing Speed:	1-15m/min	Spindle Power:	BT30-7.5KW Water-cooled Spindle
Spindle Speed:	6000~15000rpm/min	Motor:	1.5kw AC Digital Servo Motor
Reducer:	(Qingchuan)RV121/141:1	OperatingVoltage:	AC380V/50Hz
File Format:	G-code/HPGL	Control System:	Taiwan SYNTEC 5Axis
Machine Dimension:	2700×6000×2800mm	Weight:	4500kg

Platformdimensions:	1800×5800mm
Workpiece Size:	1600×5000
Feed Height:	≤500mm
Blank Speed:	25m/min
Processing Speed:	1-15m/min
Spindle Power:	BT30-7.5KW Water-cooled Spindle
Spindle Speed:	6000~15000rpm/min
Motor:	1.5kw AC Digital Servo Motor
Reducer:	(Qingchuan)RV121/141:1
OperatingVoltage:	AC380V/50Hz
File Format:	G-code/HPGL
Control System:	Taiwan SYNTEC 5Axis
Machine Dimension:	2700×6000×2800mm
Weight:	4500kg

Special Stone Granite Cutting Cnc Machine Router Engraving Milling 6000rpm/min

Introduction

The five axes of A 5-axis machine tool usually include three linear axes X, Y, and Z, and two rotating axes A and B. This allows the workpiece to be machined at different angles and orientations, reducing the need for multiple clamping and adjustments, and improving processing accuracy and efficiency.

Functional Characteristic

★ Equipment driven by Taiwan syntec servo motor,RV reducer,fast speed,high precision,good stability;

★ The whole machine X,Y,Z transmission adopts 35 import straight square rail,bearing capacity,stable operation,high machining precision;

★ Constant power BT30-7.5kw/800hz spindle motor,strong cutting force,higher processing efficiency;

★ The whole machine adopts thickened steel pipe welding,strong rigidity is not easy to deformation,the machine bearing capacity of more than 3tons

Various parameters

Product name	5-axis engraving and milling special machine HM5X-1650-1HD
Platformdimensions	1800×5800mm
Workpiece size	1600×5000
Feed height	≤500mm
Blank speed	25m/min
Processing speed	1-15m/min
Spindle power	BT30-7.5KW water-cooled spindle
Spindle speed	6000~15000rpm/min
Motor	1.5kw AC digital servo motor
Reducer	(Qingchuan)RV121/141:1
OperatingVoltage	AC380V/50Hz
File format	G-code/HPGL
Control System	Taiwan SYNTEC 5Axis
Machine dimension	2700×6000×2800mm
Weight	4500kg

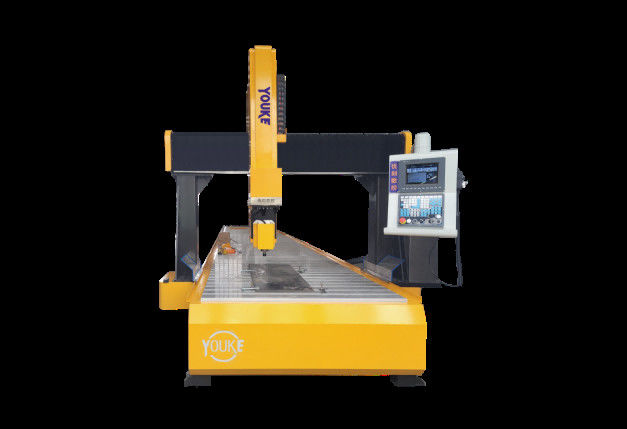

Special Stone Granite Cutting Cnc Machine Router Engraving Milling 6000rpm/min 0
