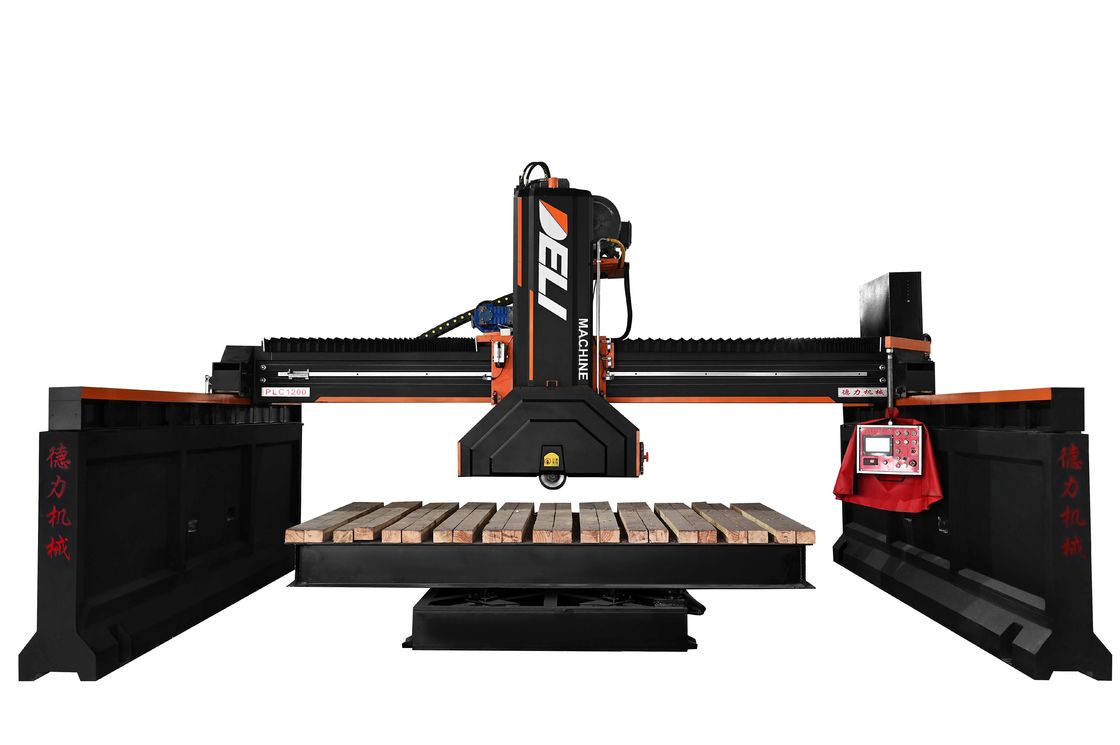

Infrared Automatic CNC Granite Tile Bridge Saw Cutting Machine PLC-1200 PLC-1400

Name: Infrared Automatic CNC Granite Tile Bridge Saw Cutting Machine PLC-1200 PLC-1400
Brand: Anhui Youke CNC Equipment Co., Ltd
SKU: PLC-400 PLC-600 PLC-700 PLC-800
Price: 10,500.00 USD
Availability: InStock

Product Details

Place of Origin: ANHUI

Brand Name: DELI

Model Number: PLC-400 PLC-600 PLC-700 PLC-800

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: width 2200 x length 5200 x height 2350mm

Delivery Time: 15 work days

Payment Terms: L/C,D/A

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                Infrared tile bridge saw, CNC tile bridge saw, Infrared cnc granite saw


Blade Diameter:	φ600-φ1200mm	Max. Vertical Stroke:	850mm
Workbench Dimensions(LxW):	3000×2000×70	Workbench Rotating Degree:	0°-90°
Water Consumption:	4 4m³/h	Main Motor Power:	22kw
Gross Power):	25.8	Weight:	11000kg
Dimension(LxWxH):	6000×4700×4200mm

Blade Diameter:	φ600-φ1200mm
Max. Vertical Stroke:	850mm
Workbench Dimensions(LxW):	3000×2000×70
Workbench Rotating Degree:	0°-90°
Water Consumption:	4 4m³/h
Main Motor Power:	22kw
Gross Power):	25.8
Weight:	11000kg
Dimension(LxWxH):	6000×4700×4200mm

Infrared Automatic CNC Granite Tile Bridge Saw Cutting Machine PLC-1200 PLC-1400

Introduction

Infrared automatic bridge cutting machine is a kind of equipment for accurately cutting large stone, building materials or other hard materials. It combines infrared positioning technology with the bridge structure design, which is specifically used for high-precision cutting in the middle position, so it is often referred to as the "middle cutting machine".

Various parameters

Product name	unit	PLC-1200	PLC-1400
Blade diameter	mm	φ600-φ1200	φ600-φ1400
Max. vertical stroke	mm	850	950
Workbench dimensions(LxW)	mm	3000×2000×70	3000×2000×70
Workbench rotating degree	n°	0°-90°
Water consumption	m³/h	4 4
Main motor power	kw	22	30
Gross power	kw	25.8 35
Weight	kg	11000	12000
Dimension(LxWxH)	mm	6000×4700×4200	6000×4700×4500

Infrared Automatic CNC Granite Tile Bridge Saw Cutting Machine PLC-1200 PLC-1400 0
