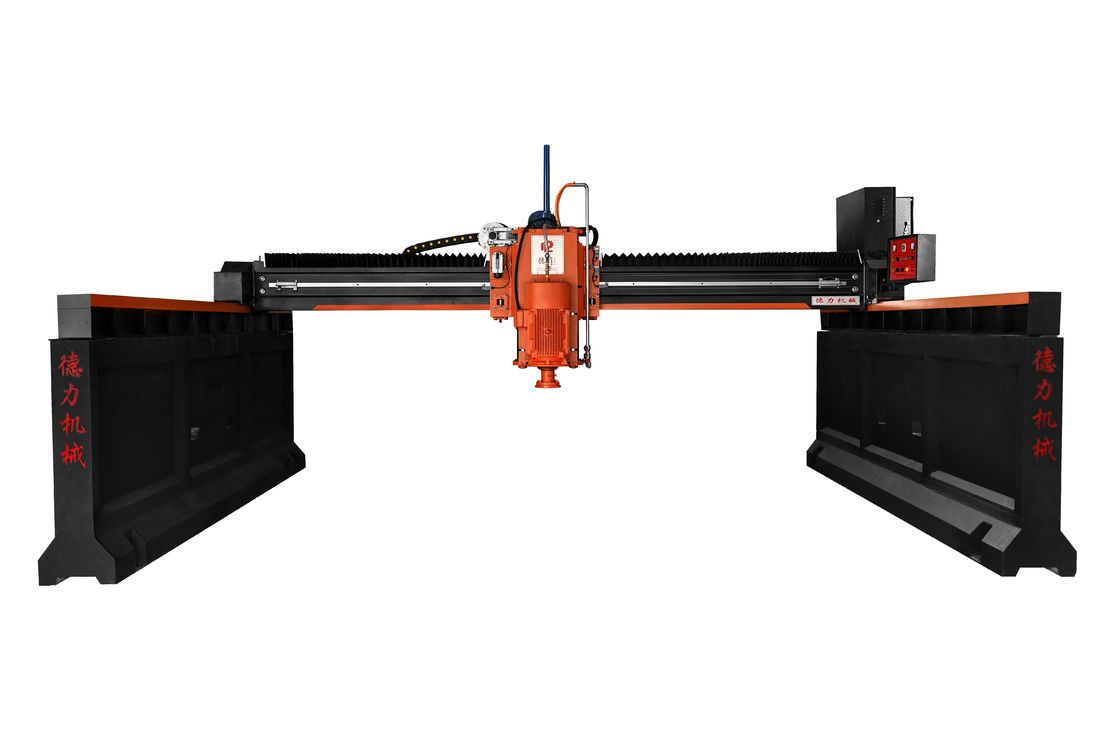

Automatic CNC Stone Cutting And Polishing Machine For Quartz Marble And Granite

Name: Automatic CNC Stone Cutting And Polishing Machine For Quartz Marble And Granite
Brand: Anhui Youke CNC Equipment Co., Ltd
SKU: BDQ-400 BDQ-500
Price: 10,500.00 USD
Availability: InStock

Product Details

Place of Origin: ANHUI

Brand Name: DELI

Model Number: BDQ-400 BDQ-500

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: width 2200 x length 5200 x height 2350mm

Delivery Time: 15 work days

Payment Terms: L/C,D/A

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Automatic cnc stone cutting and polishing machine for quartz, Quartz cnc stone cutting and polishing machine for quartz, Automatic cnc machine for marble and granite


Blade Diameter:	400mm	Max. Lifting Travel:	250mm
Max. Processing Length:	2500mm	Max. Processing Width:	2000mm
Main Motor Power:	22KW	Water Consumption:	8m³/h
Dimension(LxHxH):	6000×3500×2800mm	Weigh:	7500kg

Blade Diameter:	400mm
Max. Lifting Travel:	250mm
Max. Processing Length:	2500mm
Max. Processing Width:	2000mm
Main Motor Power:	22KW
Water Consumption:	8m³/h
Dimension(LxHxH):	6000×3500×2800mm
Weigh:	7500kg

Automatic CNC Stone Cutting And Polishing Machine For Quartz Marble And Granite

Introduction

Automatic plate bottom cutting machine is a kind of automatic equipment specially used for cutting the bottom of the plate, which is often used in woodworking, furniture manufacturing, building materials processing and other industries. Its main function is to cut or trim the bottom of the plate to the required size and shape to ensure the accuracy and beauty of the product

Various parameters

Product name	unit	BDQ-400	BDQ-500
Blade diameter	mm	400	500
Max. lifting travel	mm	250	250
Max. Processing length	mm	2500	2500
Max. Processing Width	mm	2000	2000
Main motor power	KW	22	22
Water consumption	m³/h	8	8
Dimension(LxHxH)	mm	6000×3500×2800	6000×3500×2800
Weigh	Kg	7500	8500

Automatic CNC Stone Cutting And Polishing Machine For Quartz Marble And Granite 0
