Introduction

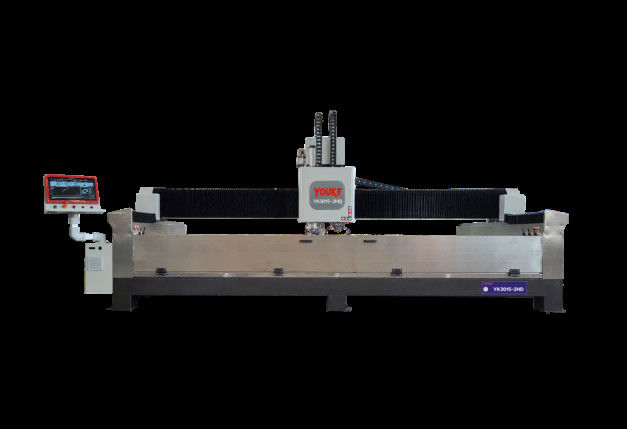

The Yk3015-2hd/2 is a multi-functional CNC machine designed to perform two different machining operations in a single clamping process. Compared with traditional single-process machining centers, dual-process machining centers are equipped with two independent spindles or tool libraries, which can continuously perform two machining tasks without changing the workpiece or re-clamping, thus significantly improving production efficiency and machining accuracy.

Functional Characteristic

★ The equipment system is developed by Shanghai Weihong and has been used for many years. Support optional height measurement function; Stone countertop double switching processing is used for automatic processing of marble, granite, granite, quartz stone, rock slab and other countertops; It can be used for special-shaped cutting of countertops, cutting under the basin, cutting in the basin, special-shaped grinding of hanging edge protection, grinding of the back round bottom, etc.; It is the preferred equipment for stone hardcover processing plants;

★ Double-sided sealed vacuum suction cup fixing clip, template type size input, with round, oval, square, polygon and other conventional processing graphic templates, easy to learn and control; Special processing supports CAD import;

★ Main accessories: full servo motor 1.5kw/1108s, X, Y, Z are imported 30 rails, fast speed, high precision and strong stability;

★ The first process is a 7.5kw high-speed spindle, which is mainly used for cutting; The second process is a 7.5kw/BT40 customized main motor, which is mainly used for high-torque grinding and polishing, which effectively ensures the processing strength of the equipment; Meet the technical needs of more home improvement market tables; Especially after the home improvement round bottom processing, the grinding torque is large, the efficiency is higher, and the main motor life is longer;

★ The machine is made of thickened square tube welding, stainless steel sink, thickened PVC plate (25mm) table, supports customized pneumatic clamping and fixing tooling, stainless steel sheet metal is surrounded by the machine, and the durability of the bed is stronger.

Various parameters
