Introduction

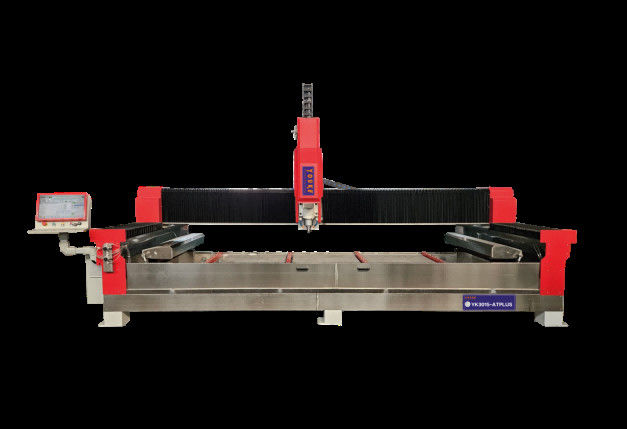

The automatic tool changing machining center is equipped with an automatic tool changing device, which can automatically change the tool as needed during the machining process without manual intervention. This greatly shortens the tool change time and improves production efficiency.

Functional Characteristic

★ The equipment system has been developed and used by Shanghai Weihong for many years,supporting the optional height measurement function;Is the stone mesa automatic knife processing special,used for marble,granite,granite,quartz stone,rock plate and other mesa automatic processing;Can do mesa shaped cutting,under the basin,basin cutting,the lower hanging edge special-shaped grinding,after the water bar grinding and other processes;Is the preferred equipment of stone hardcover processing plant;

★ Double-sided sealed vacuum sucker fixed clip,template type size input,with circular,oval,square,polygon and other conventional processing graphic template,easy to learn to control;Special processing support CAD import;

★ Main accessories:brand high speed full servo motor 1.5kw,X,Y,Z all imported 30 straight track,fast speed,high precision,strong stability;

★ The main shaft is selected 11KW/BT40 high torque motor,9 tool stores on the left and right sides,a total of 18 tool stores,to meet more automatic tool changing processing needs;

★ The machine selected thickened square pipe welding,stainless steel sink,thickened PVC plate(25mm)table,support customized pneumatic clamping fixed tooling,stainless steel sheet metal surrounded by the machine,the durability of the bed is stronger.

Various parameters
