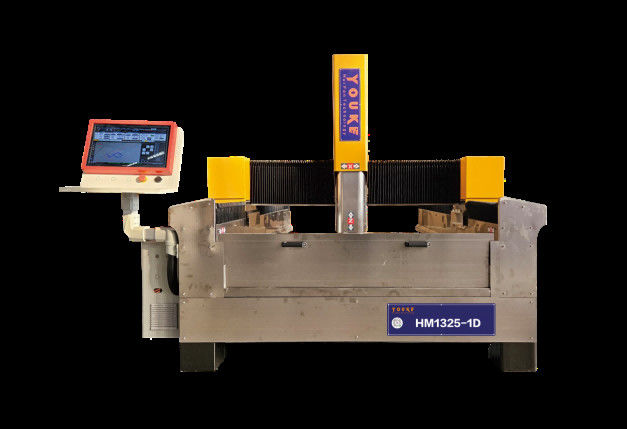

Single Head Stone Carving CNC Machine For Granite Engraving ODM

Name: Single Head Stone Carving CNC Machine For Granite Engraving ODM
Brand: Anhui Youke CNC Equipment Co., Ltd
SKU: HM1325-1D
Price: 10,500.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Model Number: HM1325-1D

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: width 2200 x length 5200 x height 2350mm

Delivery Time: 15 work days

Payment Terms: L/C,D/A

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                Single Head stone carving cnc machine, ODM stone carving cnc machine, ODM granite stone engraving machine


Platformdimensions:	1300×2500mm	Workpiece Size:	1300×2500
Feed Height:	≤400mm/700mm	Blank Speed:	25m/min
Processing Speed:	1-15m/min	Spindle Power:	5.5KW Water-cooled Spindle
Motor:	1108S/2208 ACservo Motor	OperatingVotage:	AC380V/50Hz
File Format:	G-code/HPGL	Control System:	WEIHONG Nc60A
Machine Dimension:	2250x3400x2100mm	Weight:	1900KG

Platformdimensions:	1300×2500mm
Workpiece Size:	1300×2500
Feed Height:	≤400mm/700mm
Blank Speed:	25m/min
Processing Speed:	1-15m/min
Spindle Power:	5.5KW Water-cooled Spindle
Motor:	1108S/2208 ACservo Motor
OperatingVotage:	AC380V/50Hz
File Format:	G-code/HPGL
Control System:	WEIHONG Nc60A
Machine Dimension:	2250x3400x2100mm
Weight:	1900KG

Single Head Stone Carving CNC Machine For Granite Engraving ODM

Introduction

Single-head engraving machine is a kind of CNC engraving equipment with a single spindle or tool head, which is widely used in woodworking, metal processing, plastic processing, stone engraving and other fields. Compared with multi-head engraving machines, single-head engraving machines are usually used for smaller batches or personalized customized processing tasks.

Functional Characteristic

★ The equipment system is specially designed for the stone carving industry,Optional leveling function,to ensure high quality,high efficiency,high precision; Mainly used for granite,marble,quartz stone,coppeplate,aluminum plate and other flat engraving and hollow cutting;Stone industry is the first choice of special-shaped carving processing plant;

★ Equipment driven by servo motor-758/1108s,fast speed,high precision,good stability;The whole machine X,Y,Z transmission adopts 30 import straight square rail,bearing capacity,stable operation,high machining precision;

★ The whole machine adopts thickened steel pipe welding,strong rigidity is not easy to deformation,Stainless steel surrounded the fuselage and table,the overall service life of the equipment is longer.

Various parameters

Product name	Single head engraving machine HM1325-1D
Platformdimensions	1300×2500mm
Workpiece size	1300×2500
Feed height	≤400mm/700mm
Blank speed	25m/min
Processing speed	1-15m/min
spindle power	5.5KW water-cooled spindle
Motor	1108S/2208 ACservo motor
OperatingVotage	AC380V/50Hz
File format	G-code/HPGL
Control System	WEIHONG Nc60A
Machine dimension	2250x3400x2100mm
Weight	1900KG
