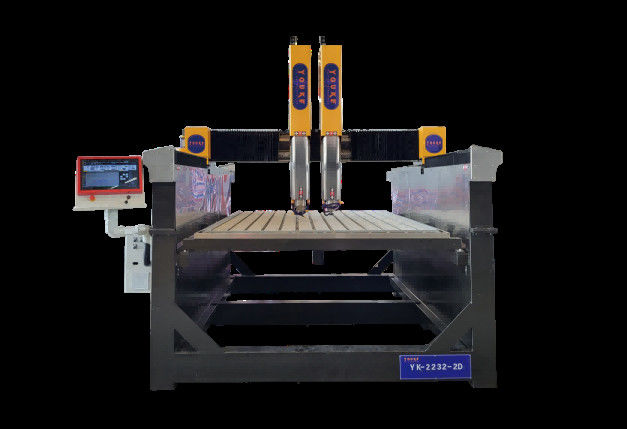

Customized Precision Stone Carving Machine For Engraving 3300kg

Name: Customized Precision Stone Carving Machine For Engraving 3300kg
Brand: Anhui Youke CNC Equipment Co., Ltd
SKU: DW2232-2D-1500
Price: 10,500.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Model Number: DW2232-2D-1500

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: width 2200 x length 5200 x height 2350mm

Delivery Time: 15 work days

Payment Terms: L/C,D/A

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                customized laser stone carving machine, 3300kg laser stone carving machine, customized laser stone engraving machine


Platform Dimensions:	2000x3000mm	Workpiece Size:	1000x3000x2
Feed Height:	≤400mm≤600mm-1500mm	Blank Speed:	25m/min
Processing Speed:	1-15m/min	Spindle Power:	5.5KW Water-cooled Spindle
Motor:	1108S/1.5Kw ACserver Motor	OperatingVoltage:	AC380V/50Hz
File Format:	G-code/HPGL	Control System:	WEIHONG Nc60A
Machine Dimension:	3200×4200×3500mm	Weight:	3300kg
Elevated Special Design:	Optional

Platform Dimensions:	2000x3000mm
Workpiece Size:	1000x3000x2
Feed Height:	≤400mm≤600mm-1500mm
Blank Speed:	25m/min
Processing Speed:	1-15m/min
Spindle Power:	5.5KW Water-cooled Spindle
Motor:	1108S/1.5Kw ACserver Motor
OperatingVoltage:	AC380V/50Hz
File Format:	G-code/HPGL
Control System:	WEIHONG Nc60A
Machine Dimension:	3200×4200×3500mm
Weight:	3300kg
Elevated Special Design:	Optional

Customized Precision Stone Carving Machine For Engraving 3300kg

Introduction

The use of stone engraving machine not only improves the efficiency and accuracy of stone processing, but also can achieve the complex effect that is difficult to achieve by traditional hand engraving, which greatly expands the scope of application and artistic expression of stone processing.

Functional Characteristic

★ This equipment is non-standard customized for stone carving industry,the processing height increases to 1500mm,there are two types of platform separation and double platform,effectively solve the high square column,non-standard shaped and other engraving problems,it is the first choice for large stone sculpting plants.;

★ Equipment driven by servo motor-1108s/1.5kw,fast speed,high precision,good stability;

★ The whole machine X,Y,Z transmission adopts 30 import straight square rail,bearing capacity,stable operation,high machining precision;

★ The whole machine adopts thickened steel pipe welding,strong rigidity is not easy to deformation,Stainless steel surrounded the fuselage and table,the overall service life of the equipment is longer,

Various parameters

Product name	Stone carving machine DW2232-2D-1500
Platform dimensions	2000x3000mm
Workpiece size	1000x3000x2
Feed height	≤400mm≤600mm-1500mm
Blank speed	25m/min
Processing speed	1-15m/min
spindle power	5.5KW water-cooled spindle
Motor	1108S/1.5Kw ACserver motor
OperatingVoltage	AC380V/50Hz
File format	G-code/HPGL
Control System	WEIHONG Nc60A
Machine dimension	3200×4200×3500mm
Weight	3300kg
Elevated special design	optional
