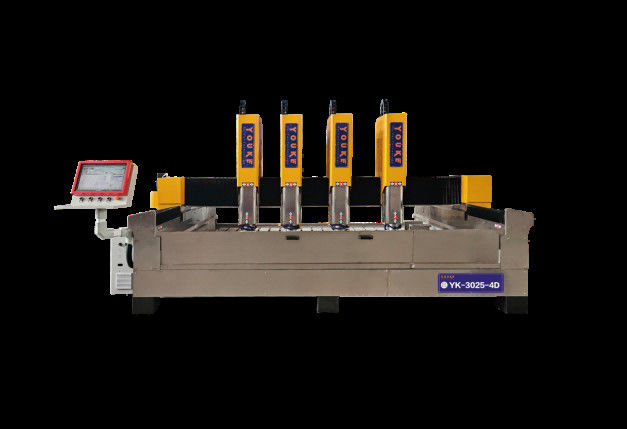

3D 4D Dynamic CNC Jade Gemstone Carving Machine 24000rpm/Min

Name: 3D 4D Dynamic CNC Jade Gemstone Carving Machine 24000rpm/Min
Brand: Anhui Youke CNC Equipment Co., Ltd
SKU: HM3020-4D
Price: 10,500.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Model Number: HM3020-4D

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: width 2200 x length 5200 x height 2350mm

Delivery Time: 15 work days

Payment Terms: L/C,D/A

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                dynamic gemstone carving machine, 24000rpm/min gemstone carving machine, dynamic cnc jade carving machine


Patformdimensions:	3000×2000mm	Workpiece Size:	750x2000x4
Blank Speed:	20m/min	Processing Speed:	1-15m/min
Spindle Power:	5.5/7.5KW Water-cooled Spindle	Spindle Speed:	6000~24000rpm/min
Motor:	1.5kw AC Digital Servo Motor	Reducer:	Planets 1:7
OperatingVoltage:	AC380V/50Hz	File Formal:	G-code/HPGL
Control System:	WEIHONG Nc60A	Machine Dimension:	4500×3000×2300mm
Weight:	3500kg	Apearance Design:	Optional

Patformdimensions:	3000×2000mm
Workpiece Size:	750x2000x4
Blank Speed:	20m/min
Processing Speed:	1-15m/min
Spindle Power:	5.5/7.5KW Water-cooled Spindle
Spindle Speed:	6000~24000rpm/min
Motor:	1.5kw AC Digital Servo Motor
Reducer:	Planets 1:7
OperatingVoltage:	AC380V/50Hz
File Formal:	G-code/HPGL
Control System:	WEIHONG Nc60A
Machine Dimension:	4500×3000×2300mm
Weight:	3500kg
Apearance Design:	Optional

3D 4D Dynamic CNC Jade Gemstone Carving Machine 24000rpm/Min

Introduction

4D stone engraving machine represents the high-end level of stone engraving technology, it combines traditional 3D engraving with the dynamic processing of the time dimension, and can achieve more complex and fine stone engraving effects. For projects seeking high quality and uniqueness, the 4D stone engraving machine is an ideal choice.

Functional Characteristic

★ Equipment system is Shanghai Weihong Company for stone engraving machine features,to ensure high quality,high efficiency,high precision;Mainly used for granite,marble,quartz stone,copper plate,aluminum plate and other flat engraving and hollow cutting;Stone industry is the first choice of special-shaped carving processing plant;

★ Equipment driven by brand servo motor,1:7 reducer,fast speed,high precision,good stability;

★ The whole machine X,Y,Z transmission adopts 30 import straight square rail,bearing capacity,stable operation,high machining precision;

★ The whole machine adopts thickened steel pipe welding,strong rigidity is not easy to deformation,Stainless steel surrounded the fuselage and table,the overall service life of the equipment is longer.

Various parameters

Product name	Stone carving machine HM3025-4D
Patformdimensions	3000×2000mm
Workpiece size	750x2500x4
Blank speed	20m/min
Processing speed	1-15m/min
spindle power	5.5/7.5KW water-cooled spindle
Spindle speed	6000~24000rpm/min
Motor	1.5kw AC digital servo motor
Reducer	Planets 1:7
OperatingVoltage	AC380V/50Hz
File formal	G-code/HPGL
Control System	WEIHONG Nc60A
Machine dimension	450034002300mm
Weight	3800kg
apearance design	optional

Stone carving machine HM3025-4D 0
