Longitudinal CNC Lathe Copying Machine For Marble Cutting

Name: Longitudinal CNC Lathe Copying Machine For Marble Cutting
Brand: Anhui Youke CNC Equipment Co., Ltd
SKU: YKQF-600Z
Price: 10,500.00 USD
Availability: InStock

Product Details

Place of Origin: ANHUI

Brand Name: YOUKE

Model Number: YKQF-600Z

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: width 2200 x length 5200 x height 2350mm

Delivery Time: 15 work days

Payment Terms: L/C,D/A

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                Longitudinal lathe copying machine, CNC lathe copying machine, Longitudinal cnc machine marble cutting


Model:	YKQF-600Z	Blade Diameter(mm):	φ400-φ600
Main Motor Power(kw):	22	Cutting Height(mm):	500/400
Max. Cutting(LxWxH)(mm):	3500×900×550/2	Max. Cutting Thickness(mm):	170
Dimensions(LxWxH)(mm):	6500×4100×3500	Water Consumption(m³/h):	4
Approximate Weight(kg):	5500

Model:	YKQF-600Z
Blade Diameter(mm):	φ400-φ600
Main Motor Power(kw):	22
Cutting Height(mm):	500/400
Max. Cutting(LxWxH)(mm):	3500×900×550/2
Max. Cutting Thickness(mm):	170
Dimensions(LxWxH)(mm):	6500×4100×3500
Water Consumption(m³/h):	4
Approximate Weight(kg):	5500

Longitudinal CNC Lathe Copying Machine For Marble Cutting

Introduction

The equipment uses a bridge structure and usually consists of two main beams placed in parallel, which span the entire work area to form a stable machining platform. The double beam structure provides higher rigidity and stability and is suitable for the processing of heavy workpieces.

Functional Characteristic

This machine adopts double beam structure of gantry type. Full servo control, using high-precision linear track and oil-immersed and dust-proof structure to ensure equipment accuracy and service life, the machine can realize CNC programming and CAD import, three-dimensional using NC path to meet all kinds of high-precision stone (cement products) shaped workpiece processing. Adjusting the parameters can realize the operation of one person and multiple machines.

Various parameters

Product name	Longitudinal CNC copying machine YK-QF-600Z
Model	YKQF-600Z
Blade diameter(mm)	φ400-φ600
Main motor power(kw)	22
Cutting height(mm)	500/400
Max. cutting(LxWxH)(mm)	3500×900×550/2
Max. cutting thickness(mm)	170
Dimensions(LxWxH)(mm)	6500×4100×3500
Water consumption(m³/h)	4
Approximate Weight(kg)	5500

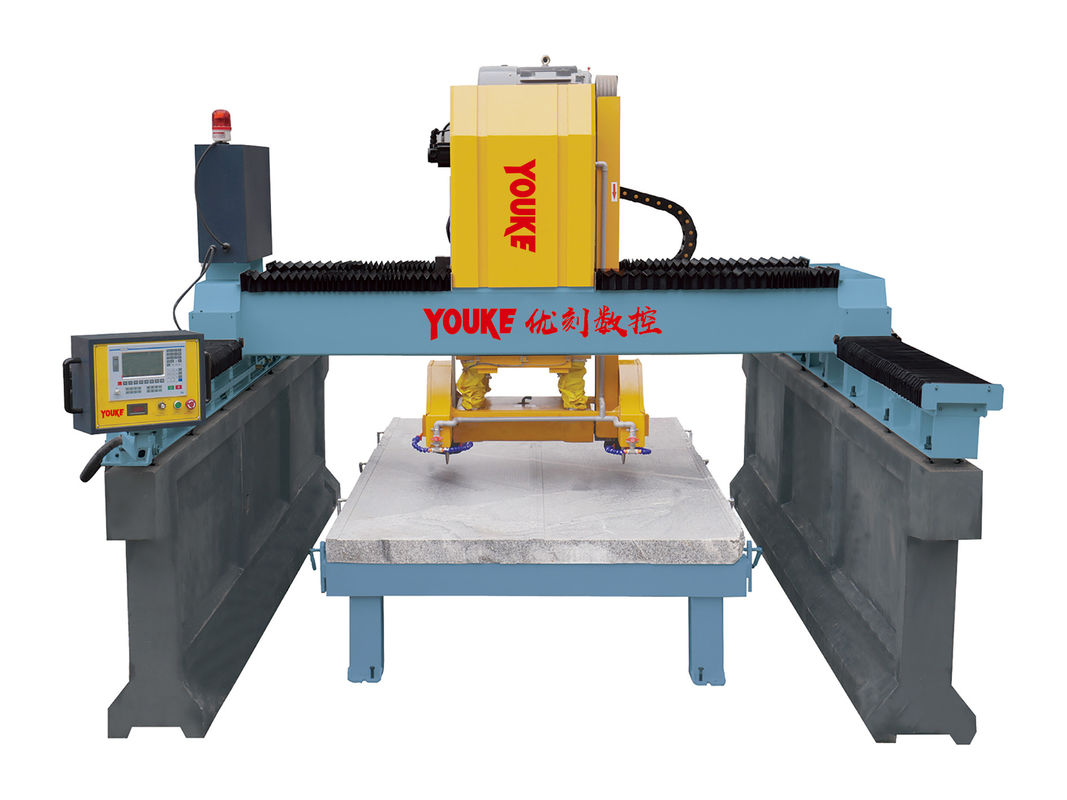

Longitudinal CNC Lathe Copying Machine For Marble Cutting 0
