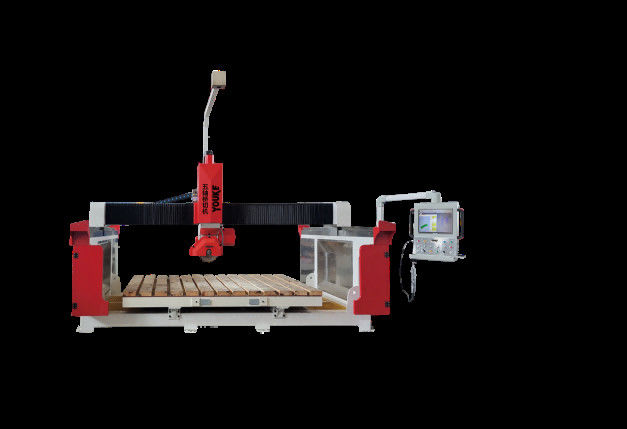

Industrial Automatic 5 Axis Bridge Saw Tile Stone Cutting Machine

Name: Industrial Automatic 5 Axis Bridge Saw Tile Stone Cutting Machine
Brand: Anhui Youke CNC Equipment Co., Ltd
SKU: CNC5X-5700B
Price: 10,500.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Model Number: CNC5X-5700B

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: width 2200 x length 5200 x height 2350mm

Delivery Time: 15 work days

Payment Terms: L/C,D/A

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                5 axis bridge saw Machine, Industrial 5 axis bridge saw, 5 Axis stone cutting bridge saw


Aaxis Stroke:	0-90(automatic)	C Axis Stroke:	±365
(mm)Maximum Machining Size:	3200×2000X12C	(m/min)Fastruning Speed:	25
(KW)Spindle Power:	18.5/22	(mm)Saw Blade Diametel:	300-500
(mm)Platform Size:	3200×2000	(°)Flip Angle:	0-85
(kw)The Total Power:	≈26/30	(kg)The Total Weight:	≈4300
(mm)Equipment Dimensions:	5800×3300×3500	Camera Function:	Industrial Camera
The Knife Function:	Optional	Chuck Function:	Optional
Cutter Function:	Optional

Aaxis Stroke:	0-90(automatic)
C Axis Stroke:	±365
(mm)Maximum Machining Size:	3200×2000X12C
(m/min)Fastruning Speed:	25
(KW)Spindle Power:	18.5/22
(mm)Saw Blade Diametel:	300-500
(mm)Platform Size:	3200×2000
(°)Flip Angle:	0-85
(kw)The Total Power:	≈26/30
(kg)The Total Weight:	≈4300
(mm)Equipment Dimensions:	5800×3300×3500
Camera Function:	Industrial Camera
The Knife Function:	Optional
Chuck Function:	Optional
Cutter Function:	Optional

Industrial Automatic 5 Axis Bridge Saw Tile Stone Cutting Machine

Introduction

5-axis bridge cutting machine is an advanced CNC equipment, mainly used for stone, tile, marble and other materials cutting and processing. Through the linkage of five axes, it realizes the complex cutting and engraving of materials, and has the characteristics of high precision and high efficiency.

Functional Characteristic

★ This machine is a special 5-axis bridge cutting machine,aiming at the cutting and copying processing of specification boards and various special-shaped shapes (mainly:polygon,triangle,fan,table panel processing,oval,diamond,circle,horse belly edge,any Angle chamfer,straight and arc line copying);It has the advantages of fast speed,high cutting precision,simple operation and easy to learn.Suitable for rock plate,marble,granite,quartz stone and granite processing.

★ The system is specially designed for 5-axis bridge cutting machine,CNC system and Huichuan servo drive bus communication,JOG running,RTCP linkage function,support CAD import,fast response speed,higher processing accuracy.

Various parameters

Product name	5-axis bridge cutting machine CNC5X-500B
Aaxis stroke	0-90(automatic)
C axis stroke	±365
(mm)Maximum machining size	25
(mm)Maximum machining size	3200×2000X12C
(KW)Spindle power	18.5/22
(mm)Saw blade diametel	300-500
(mm)Platform size	3200×2000
(°)Flip Angle	0-85
(kw)The total power	≈26/30
(kg)The total weight	≈4300
(mm)Equipment dimensions	5800×3300×3500
Camera function	Industrial camera
The knife function	optional
Chuck function	optional
Cutter function	optional

Industrial Automatic 5 Axis Bridge Saw Tile Stone Cutting Machine 0

Industrial Automatic 5 Axis Bridge Saw Tile Stone Cutting Machine 1

Industrial Automatic 5 Axis Bridge Saw Tile Stone Cutting Machine 2

Industrial Automatic 5 Axis Bridge Saw Tile Stone Cutting Machine 3
